Messages

The Messages section provides a detailed log of the incoming data from tracking devices. Each message represents a snapshot of vehicle status at a specific moment in time.

Through the Messages module, you can trace all the signals a vehicle sent during a selected period to review and test its activity or investigate any unusual patterns.

Tracing Messages

To view and trace messages:

1. Use the search bar to select the vehicle you want to inspect.
2. Select the date and time range.
3. Click Trace to fetch results.

Once loaded:

• Summary cards show the total activity values for the vehicle in that timeframe — consider this as a quick visual report.

Table View

• The data appears in a table view, separated by days so you can easily browse signal logs by date.

• You can toggle Parameters to display the raw data format from the device.

Export the signal logs of any day if you need to analyze it in XLS, XLSX, and CSV format.

Graph View

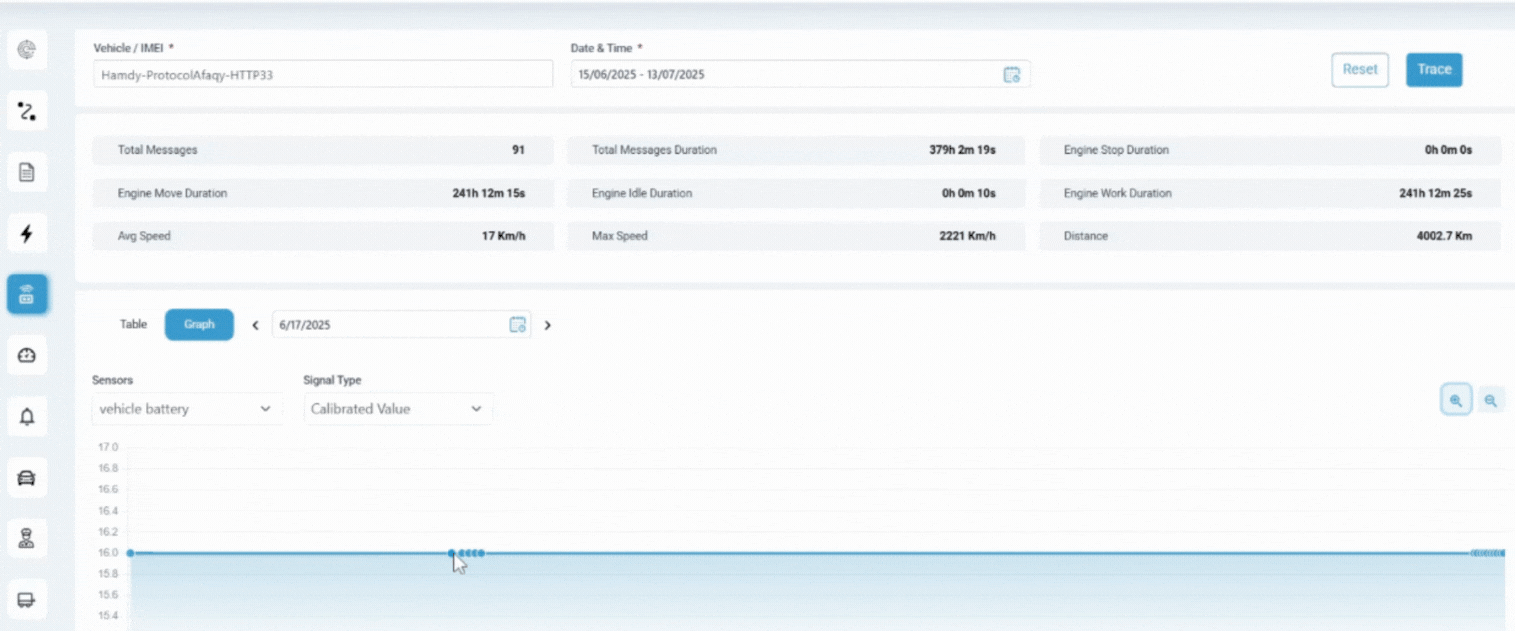

You can switch to the Graph view to visually analyze signal behavior over time:

• Select the sensor from the dropdown list (e.g., Vehicle Battery).
• Choose the Signal Type (e.g., Calibrated Value or Raw).
• The system will plot the signal values as data points across the selected day.

• Clicking on a specific point in the graph displays its exact value and timestamp, with supporting icons to further understand it.

Signal Data Icons

Time: Shows the exact timestamp of the selected signal point.

Direction: Displays the vehicle’s direction at the signal point.

Speed: Shows the speed recorded at that moment.

Distance: Displays the total distance at the signal point.

Graph View Icons

Zoom In: Magnify the graph view.

Zoom Out: Reduce the graph zoom.

This view helps in identifying signal trends and pinpointing irregular behaviors.
